De-Tuning Reactor Selection Tables 240V 60Hz 3-phase

De-Tuning Reactor 240V, 60Hz Selection Table

Please select capacitor de-tuning reactors from the tables below:

240V, 60Hz, 3-phase

Capacitor Data

De-tuning Reactor Data
kVAR uF(wye) uF(delta) Xc New kVAR Catalog Number mH XL Amps (maximum) Watts Loss
10 460.5 153.5 5.760 10.8 DTR-0010-240-60-227 1.069 0.403 28.6 70
15 690.8 230.3 3.840 16.1 DTR-0015-240-60-227 0.713 0.269 42.8 100
20 921.0 307.0 2.880 21.5 DTR-0020-240-60-227 0.535 0.202 57.1 110
25 1151.3 383.8 2.304 26.9 DTR-0025-240-60-227 0.428 0.161 71.4 130
30 1381.6 460.5 1.920 32.3 DTR-0030-240-60-227 0.356 0.134 85.8 140
35 1611.8 537.3 1.646 37.6 DTR-0035-240-60-227 0.306 0.115 99.9 150
40 1842.1 614.0 1.440 43.0 DTR-0040-240-60-227 0.267 0.101 114.2 170
50 2302.6 767.5 1.152 53.8 DTR-0050-240-60-227 0.214 0.081 142.7 180
60 2763.1 921.0 0.960 64.5 DTR-0060-240-60-227 0.178 0.067 171.3 230
75 3453.9 1151.3 0.768 80.6 DTR-0075-240-60-227 0.143 0.054 214.1 240
80 3684.1 1228.0 0.720 86.0 DTR-0080-240-60-227 0.134 0.050 228.4 270
90 4144.7 1381.6 0.640 96.8 DTR-0090-240-60-227 0.119 0.045 256.9 270
100 4605.2 1535.1 0.576 107.5 DTR-0100-240-60-227 0.107 0.040 285.5 320
120 5526.2 1842.1 0.480 129.0 DTR-0120-240-60-227 0.089 0.034 342.6 360
125 5756.5 1918.8 0.461 134.4 DTR-0125-240-60-227 0.086 0.032 356.8 380
140 6447.2 2149.1 0.411 150.5 DTR-0140-240-60-227 0.076 0.029 399.7 390
150 6907.8 2302.6 0.384 161.3 DTR-0150-240-60-227 0.071 0.027 428.2 470
175 8059.1 2686.4 0.329 188.2 DTR-0175-240-60-227 0.061 0.023 499.6 550
200 9210.4 3070.1 0.288 215.1 DTR-0200-240-60-227 0.053 0.020 570.9 700

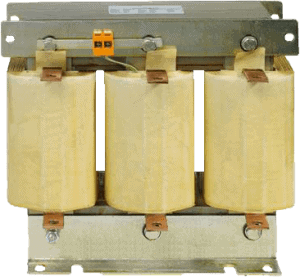

De-Tuning Reactor 240V, 60Hz

De-Tuning Reactor 240V, 60Hz
De-Tuning Reactor 240V, 60Hz

De-Tuning Reactor 240V, 60Hz

Reactor Dimensions (mm) and Weight (kg)
kVAR Catalog Number A B C D D‘ E E‘ Ø1 Ø2  F G kg
10 DTR-0010-240-60-227 230 205 115 176 150 71 90 7 11 — — 11
15 DTR-0015-240-60-227 230 205 115 176 150 71 90 7 11 — — 12
20 DTR-0020-240-60-227 230 205 140 176 150 95 114 7 11 — — 18
25 DTR-0025-240-60-227 240 210 140 185 150 93 113 9 11 — — 19
30 DTR-0030-240-60-227 240 210 140 185 150 93 113 9 11 214 224 20
35 DTR-0035-240-60-227 240 210 150 185 150 103 123 9 11 214 224 23
40 DTR-0040-240-60-227 265 240 155 200 150 102 132 10 11 234 244 27
50 DTR-0050-240-60-227 300 240 170 224 150 119 147 10 11 269 279 34
60 DTR-0060-240-60-227 300 270 190 224 150 119 147 10 11 269 279 37
75 DTR-0075-240-60-227 300 270 205 224 150 134 162 10 11 269 279 46
80 DTR-0080-240-60-227 300 300 205 224 150 134 162 10 11 269 279 49
90 DTR-0090-240-60-227 300 300 205 224 150 134 162 10 11 269 279 51
100 DTR-0100-240-60-227 300 330 205 224 150 134 162 10 11 269 279 55
120 DTR-0120-240-60-227 360 355 220 264 — 155 183 10 — 299 309 69
125 DTR-0125-240-60-227 360 355 220 264 — 155 183 10 — 299 309 70
140 DTR-0140-240-60-227 360 355 220 264 — 155 183 10 — 299 309 73
150 DTR-0150-240-60-227 420 410 250 316 — 176 206 13 — 369 379 98
175 DTR-0175-240-60-227 420 470 250 316 — 176 206 13 — 369 379 111
200 DTR-0200-240-60-227 420 470 250 316 — 176 206 13 — 369 379 113
